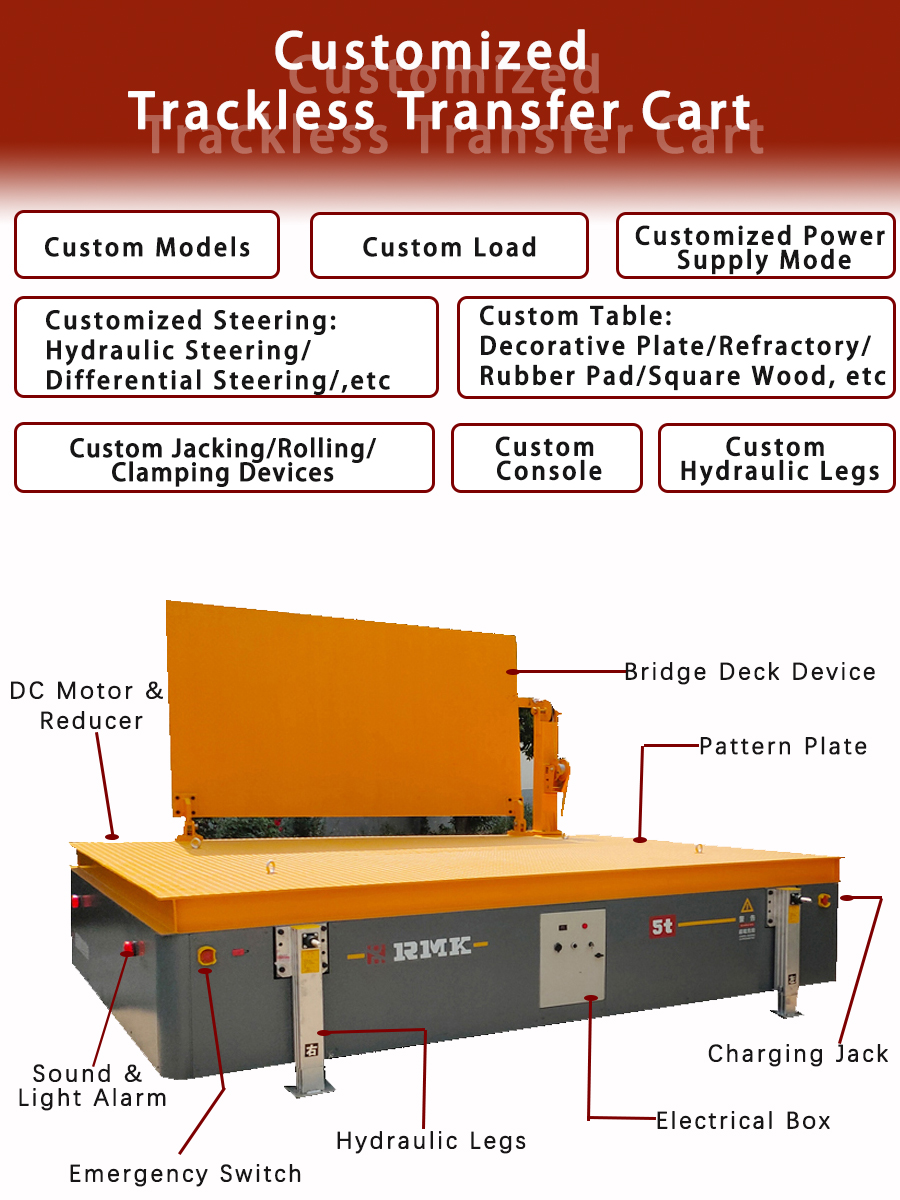

Electric Driven Transfer Platform
The automatic dolly transfer platform is an electric transfer flatbed cart designed for material handling. The body is made of a thick steel plate and with super anti-distortion performance. The battery is installed in the transfer platform. The batteries supplied the electricity to the DC motor through the electrical control system to operate the electric dolly transfer platform start, stop, go forward, backward, turn around, and realize other functions.
Features of Electric driven transfer platform
The battery provides energy to provide power for the electrical system, thereby providing power to the motor, driving the reducer to amplify the torque to provide transmission force to the transmission system, and realize the forward, backward, turning, start, and stop operations of the trolley.
1. During the use of the trolley, attention should be paid to the lubrication of the steering wheels. If abnormal noise is found during walking, the fault should be eliminated in time and lubricating oil should be added to the bearings regularly.
2. When the transport car is in use, the road surface needs to be smooth, and unevenness is prohibited. For the joystick control handle and remote control, it is prohibited to use excessive force to damage the joystick during use.
3. When the trackless platform cart is running, it has good turning flexibility and requires skilled operators. In the process of using the battery, pay attention to avoid battery loss, charge and discharge regularly, and add electrolytes regularly.
Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its Electric Driven Transfer Platform Worldwide!
| Technical parameters for trackless electric transfer trolleys |
| Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| Structure of frame | steel plates welded, beam structure |
| Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| Ground requirement | cement floor | steel plate ground |
| Table size(mm) | 3000×
2000 | 3600×
2000 | 4000×
2200 | 4500×
2200 | 5000×
2200 | 5500×
2300 | 6000×
2300 | 10000×
3000 |
| Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| Ground clearance(mm) | 50 | 75 |
| Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| Turning type | turning while driving with no stop |
| Control method for turning | control button |
| Turning structure | mechanical |
| Wheel material | ZG55+hydropur ture |
| Running speed(m/min) | 0-15 | 0-12 |
| Brake principle | electric magnetic brake |
| Operation method | with wire or no wire |
| Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
| Battery maintenance | free of maintenance |
| Charger's installation | installed on cart | split-type |
Advantage
No need to install the rail, no damage to the floor
The transfer platform can be realized double way moving and 360 degrees turning
DC drive and heavy loading capacity
small turning radius, flexible operation
Braking distance is short and has the alarming system
Hot Tags: automatic dolly transfer platform, China, suppliers, manufacturers, factory, cheap, customized, price, made in China, Rail Guided Motorized Transfer Car, 50 Ton Transfer Carts, Motorized Trolley, Transfer Wagon, Battery Transfer Platform Truck, Flat Industrial Transfer Trolleys, material transfer trolley, industrial transfer car, industrial motorized carts
Product Tags:
|
|

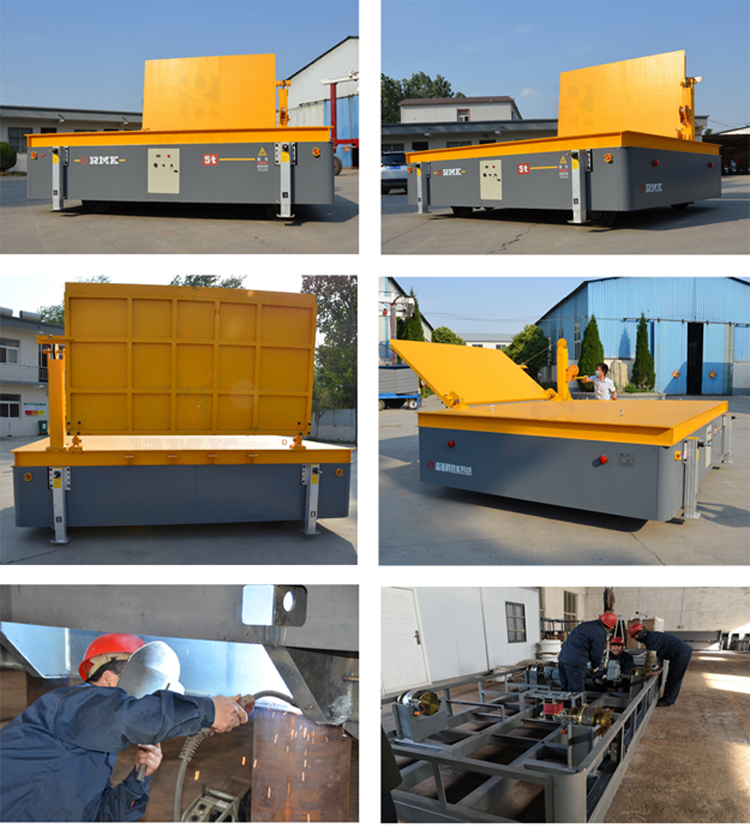

Electric Driven Transfer Platform Images
|
