Heavy Load Die Transfer Cart AC Motor For Material Handling Stepless Speed

Name: Heavy Load Die Transfer Cart AC Motor For Material Handling Stepless Speed
Brand: Remarkable
Price: 1 USD

Heavy Load Die Transfer Cart AC Motor For Material Handling Stepless Speed Manufactures

Brand Name : Remarkable

Model Number : RWP

Certification : CE, ISO

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600

Delivery Time : 30-45 work days

Packaging Details : 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.

Power supply : Maintenance free battery

Load : 25 tons

other name : die transfer wagon Hydraulic lift truck

Operation method : Wireless remote control & Hand operate pendant

Traveling speed（m/min） : 0-30 (Stepless speed regulation)

Brake mode : Electromagnetic brake

application area : Material transportation

Move Way : Forward, backward, turning while driving with no stop

Contact Now

Heavy Load Die Transfer Cart AC Motor For Material Handling Stepless Speed

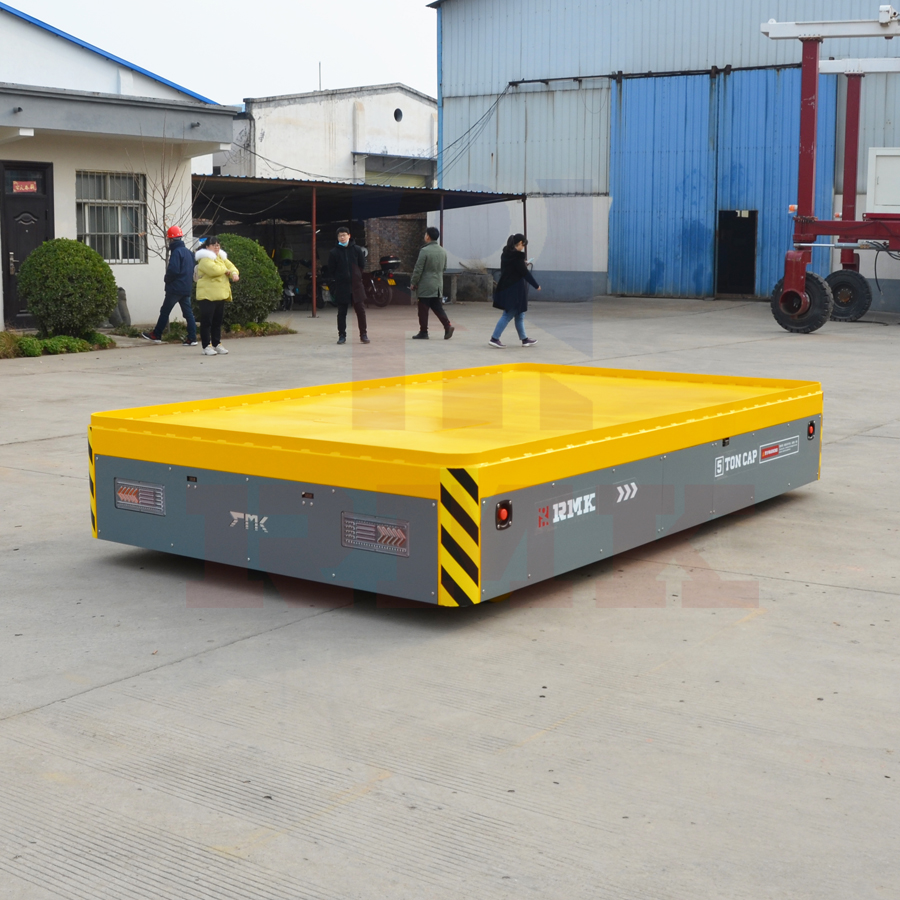

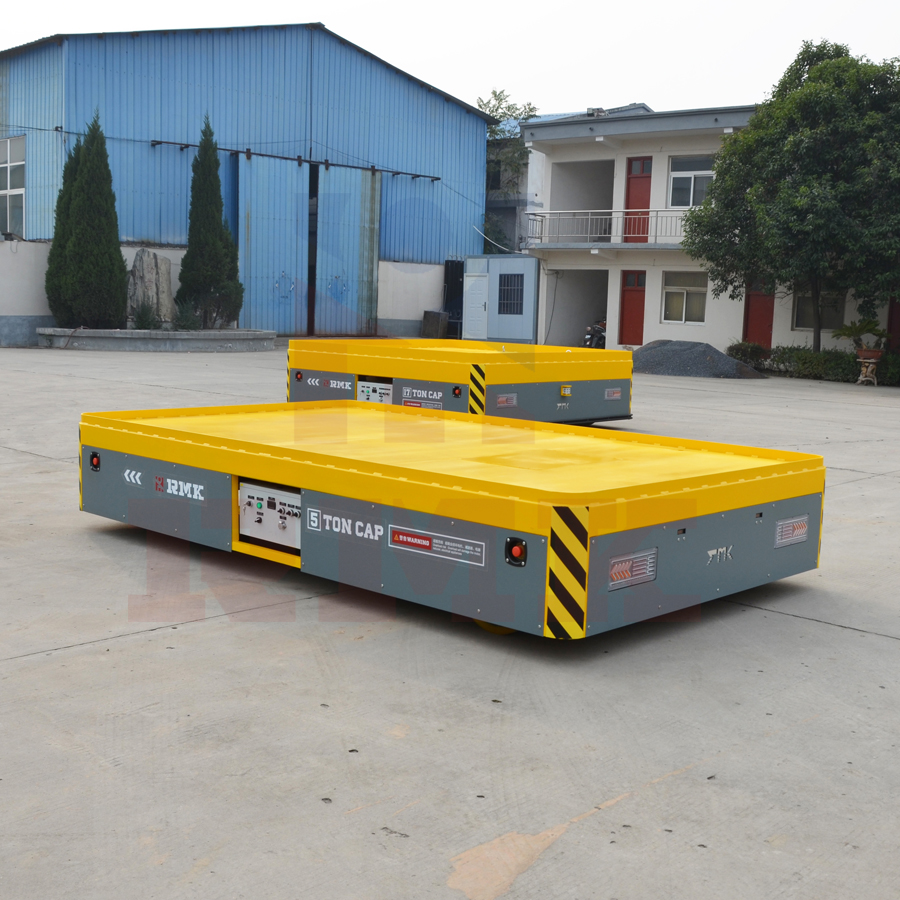

^{The electric trackless flat car is literally an electric flat car without track. Compared with the traditional rail flat car, it belongs to a special category of the electric flat car family and is a new favorite of the electric flat car industry in the plant area. This type of electric flat car does not need to walk on the track, which gets rid of the dependence of the traditional track flat car on the track. It will not damage the ground during walking, and can advance, retreat and turn freely on the flat ground. The characteristics of walking direction and route can be changed at any time, making it very suitable for the production site where the running route is not fixed.}

Heavy Load Die Transfer Cart AC Motor For Material Handling Stepless Speed

^{Compared with the electric vehicles mainly used for human life and travel, modern industry has also pioneered electric flat cars that can carry large tonnage heavy objects. The power supply mode is the same as that of manned electric vehicles, which all use batteries. However, industrial battery electric flat cars can be divided into trackless and trackless. Its working principle is:}

^{The battery is installed inside the flat car, and the power supply provides power to the DC traction motor through the electrical control system. Make the transfer car start, stop, forward, backward, speed regulation, etc.}

Technical parameters for electric transfer carts
1	rated load(t)	5	10	15	20	30	40	50	150
2	impacted rated load(t)	7.5	15	22.5	30	45	60	75	225
3	structure of frame	steel plates welded, beam structure
4	max. wheel load(t)	2.8	4.3	4.8	5.6	7.7	10	12	27
5	ground requirement	cement floor					steel plate ground
5	ground requirement	cement floor					steel plate ground
6	table size(mm)	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000× 2300	10000× 3000
7	height of the whole cart(mm)	450	530	600	600	650	700	700	1200
8	ground clearance(mm)	50							75
9	wheels base(mm)	1500		1700			1800		2000
10	axles distance(mm)	2500	3100	3400	3900	4300	4800	5200	10000
11	turning radius(mm)	2501	3101	3401	3901	4301	4801	5201	10001
12	turning type	turning while driving with no stop
13	control method for turning	control button
14	turning structure	mechanical
15	motor power(Kw)	3.5	5	6	7	10	12	15	15
16	wheel diameter(mm)	Ф300 x 4	Ф350 x 4		Ф400 x 4	Ф400 x 6	Ф500 x 6		Ф600 x 8
21	battery model	D-250 x 24	D-33 x 24	D-400 x 24	D-440 x 24	D-250 x 36	D-330 x 36	D-440 x 36	D-600 x 36
22	battery maintenance	free of maintenance
23	charger's installation	installed on cart				split-type
24	charger function	automatic charging
25	radar control	3-0.3m, automatic stop for obstacles
26	warning equipment	sound and light
27	other functions	turning light, night light and power display
