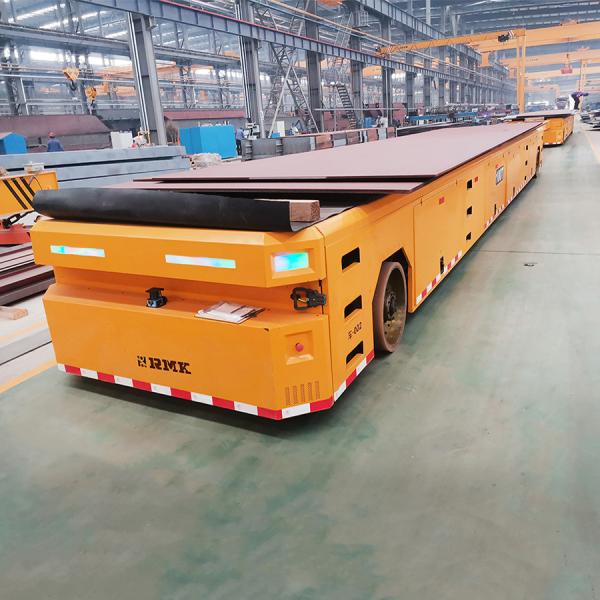

Multi Directional Heavy Duty Transfer Cart

Multi Directional Heavy Duty Transfer Cart

^{Remarkable designed and manufactured a multidirectional heavy duty mover with 12 ton, 30 ton, 50 ton transport platform cart for an important mechanical Company.
This battery powered trolley is very useful in order to avoid the overhead crane usage to move material around the plant.
It can go under the load, lift it by 200 mm,Roller carrier and Clamping device, bring it wherever is necessary and lie it down. Thanks to this feature it is possible to save lot of time, move heavy duty materials in a safer way (avoiding suspended loads) and leave the overhead crane to other tasks.
This multidirectional heavy duty mover trolley is also very practical due to its multidirectional feature. Every wheel’s unit can steer independently so this electric mover can perform any kind of steering: 90° steering (side move), diagonal steering, carousel (steering in its center), compass (turn around a point) and standard Ackermann steering.
Combining self-loading feature to multidirectional one it means to have as much flexibility as possible, since it is possible to use all available space in every moment it is needed, without any compromise.
This multidirectional heavy duty mover carts is battery powered and it can be equipped with lithium battery, in order to have the best available performances, reducing the charging time to approx. 2 hours (compared to 8 hours of standard batteries).
This particular version is also equipped with Automatic trackless transfer trolley feature. Thanks to an optical sensor that can see coloured stripes on ground it can follow the stripes and go ahead in a completely automatic way.
Thanks to all these features this heavy duty multidirectional transfer platform cart is much appreciated by customers.
Remarkable Company produces these battery multidirectional heavy duty mover trolley for USA, Europe, South and Central America, Asia and Australia.
Every electric cart can be customized on customer request in every detail. Battery powered trolleys on wheels}

RWP trackless transfer cart

^{30 tonnes – 6000×2500 mm}

^{Main features:
Capacity: 30 ton (up to over 500 tons on request)
Steering: omnidirectional
Power supply: lead-acid battery (gel, lithium and others on request)
Drive motors: AC motors
Steering motors: AC motors
Dimensions: 6000×2500 mm (other dimensions on request)
Travel speed: 30m/min
Battery charger function: Automatic charging}

^{Command: Wireless remote control & Hand operate pendant AGV: on request}

lithium battery Powered Material Transfer Cart

Multi directional Material Transfer Cart

50T Heavy Duty Transfer Cart

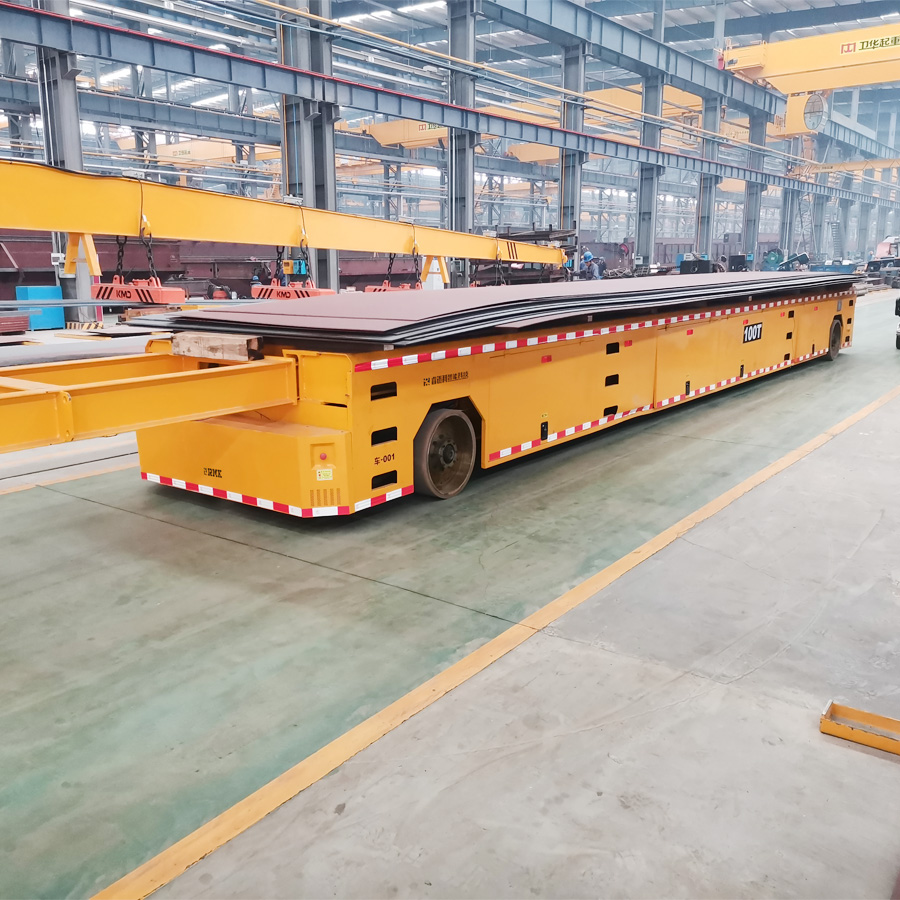

Multi Directional Heavy Duty Transfer Cart Images
